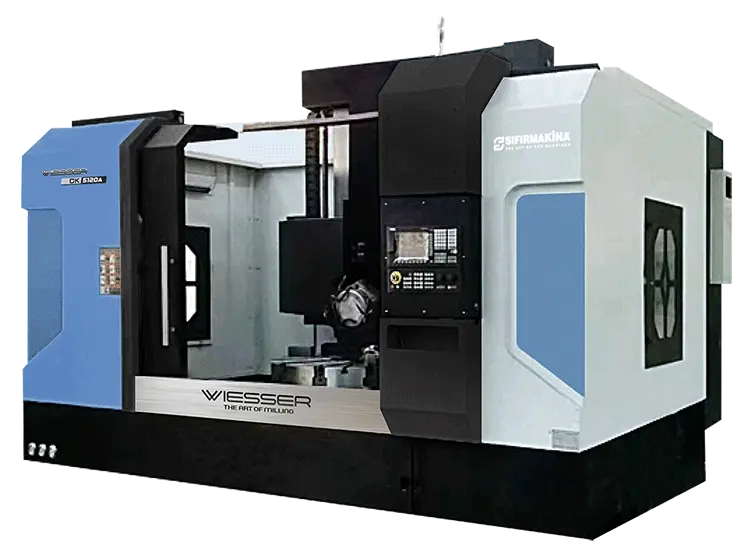

Wiesser CK5120A / RAM Type CNC Vertical Lathe
Standard Features
-
Fanuc 0i-TF Plus Control Unit
Strong and Wide Body Structure
X and Z axis Linear Roller Guide + Box Way RAM
1.800mm Chuck diameter
Number of turret stations: 4-station turret with an 8-degree incline.
Pallet Type Chip Conveyor
Central Lubrication System
Foot Pedal for Chuck Clamp-Unclamp
Fully enclosed case
3-color warning lamp
Interior lighting lamp
Machine mounting foot set
Tool Bag and Kits
CE Equipment
Transformer
User and Maintenance Manuals
Capacity Information
-
Max. swing over bed: Ø2.000 (mm)
Max. turning diameter: Ø2.000 (mm)
Max. turning height: 1.000 (mm)
Chuck diameter: Ø1.800 (mm)
Worktable load capacity: 8.000 (kg)
Max. spindle speed: 5 ~ 120 (rpm)
Spindle and motor drive type: Gearbox (Dual Speed) / Option: 4-Speed Gearbox
Spindle motor power: 22 (kW) / Opt. 15 (kW) for 4-Speed Gearbox
Servo Drive Controlled Turret
Number of turret stations: 4-station turret with an 8-degree incline.
Square tool dimensions: 40x40 (mm)
Boring bar holder diameter: Ø80 (mm)
X axis travel: -50 ~ 1.200 (mm)
Z axis travel: 650 (mm)
Beam lifting stroke: 700 (mm)
Guideway Type / Dimensions (X*Z): 55*45 (mm) Linear Roller Guideway + Box Guideway RAM
Ballscrew Diameter (X*Z): Ø63*63 (mm)
X*Z axis rapid feedrate: 15*12 (m/min.)
Cutting feedrate: 5 (m/min.)
X axis motor power / Torque: 4,7 (kW) / 30 (Nm)
Z axis motor power / Torque: 4,7 (kW) / 30 (Nm)
Machine dimensions (WxDxH): 4.600x3.500x3.500 (mm)
Approximate Gross Machine Weight: 18.500 (kg) (May vary depending on options.)
